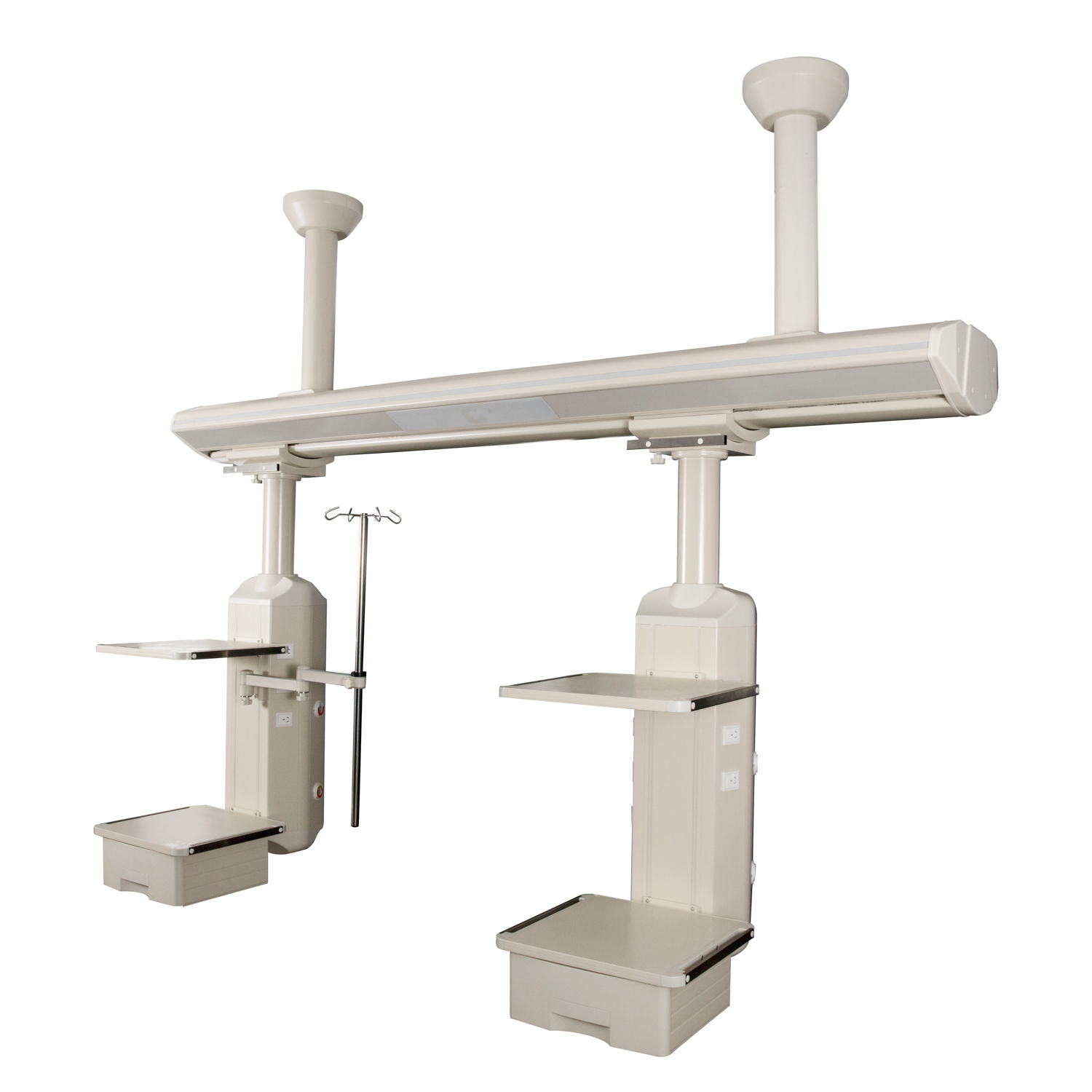

EXP-30 Series ICU Electric Medical Gas Pendant Hospital Surgical Ceiling Pendant

Name: EXP30 Series ICU Electric Medical Gas Pendant Hospital Surgical Ceiling Pendant
Brand: Zenva
Price: 1 USD

Brand Name : Zenva

Model Number : EXP-30

Certification : CE ISO9001 ISO 13485

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : T/T

Delivery Time : 7-15 working days

Packaging Details : Wooden Case

Beam Length : 2400-2800 mm

Material : Aluminum Alloy

Accessories : Tray; Drawer; Gas outlet etc

Optional : IV Pole, Basket etc

Ceiling Height : > 2.5m

OEM : Acceptable

Double Arm : Option

Load Capacity : 300 KG

Factory Location : Shanghai

Production Time : 7 working days after receiving the payment

Contact Now

Surgical Hospital Ceiling Pendant Medical Equipment OT Room Electric ICU Standard Gas Pendant

EXP-30 Series ICU Electric Medical Gas Pendant Hospital Surgical Ceiling Pendant

Operating room Pendant Detailed Technical Parameter

1. apply in operating room ,endoscope room ,anesthesia room and hospital wards so on

2. is available in single and double arm configurations .Each joint has a rotation range up to ≤350 degree.

3. ceiling

4. pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.

5. can rotation, rotation angle≤340 degree.

6. high-strength aluminium alloy,wear-well reduce your cost

7. pendant color blue ,red and so on

8 pendant dimension can customize

9. medical gas outlet optional German / British /America/Japanese/ French /Chinese standards.

10. can horizontal rotation ,cannot lift

Specification

Model	EXP-30	Mark
Material	used high-strength aluminum alloy ,modular design ,surface electrostatic powder painting,prevent corrosive ,easy to clean	low maintenance,never rust
Brake way	damping friction brake,to make sure without drifting and easy to stop,insure safe	pneumatic is optional
beam length	2400-2800mm	length is optional
Head service	column ,standard height 800mm	height is optional
loading	≥180kg
shelf loading	≥60kg
degrees rotation	≤340 º

Standard Configuration

Model	EXP-30			Mark
Shelf	2 pcs
Drawer	1 pcs
I.V Pole	1 pcs
Extension arm	1 pcs
Gas outlets	Surgical Pendant	Anesthesia Pendant	Endoscopy Pendant
Gas outlets	O21,Vac1,Air*1	O21,Vac1,Air1 N2O1,AGSS*1	O21,Vac1,Air1 CO21	DIN Standard
Electrical socket	6pcs (220V 10 A)			Universal Type

Other Configuration optional

RJ 45	Quantity is optional according to hospital need
Video Socket	Quantity is optional according to hospital need
Grounding socket	Quantity is optional according to hospital need
Monitor bracket	Quantity is optional according to hospital need
Electrical socket and gas outlets u can choose different standards,quantity is optional according to hospital need

Accessories:

EXP-30 Series ICU Electric Medical Gas Pendant Hospital Surgical Ceiling Pendant

Production Process

EXP-30 Series ICU Electric Medical Gas Pendant Hospital Surgical Ceiling Pendant

Package & Feedback

EXP-30 Series ICU Electric Medical Gas Pendant Hospital Surgical Ceiling Pendant
